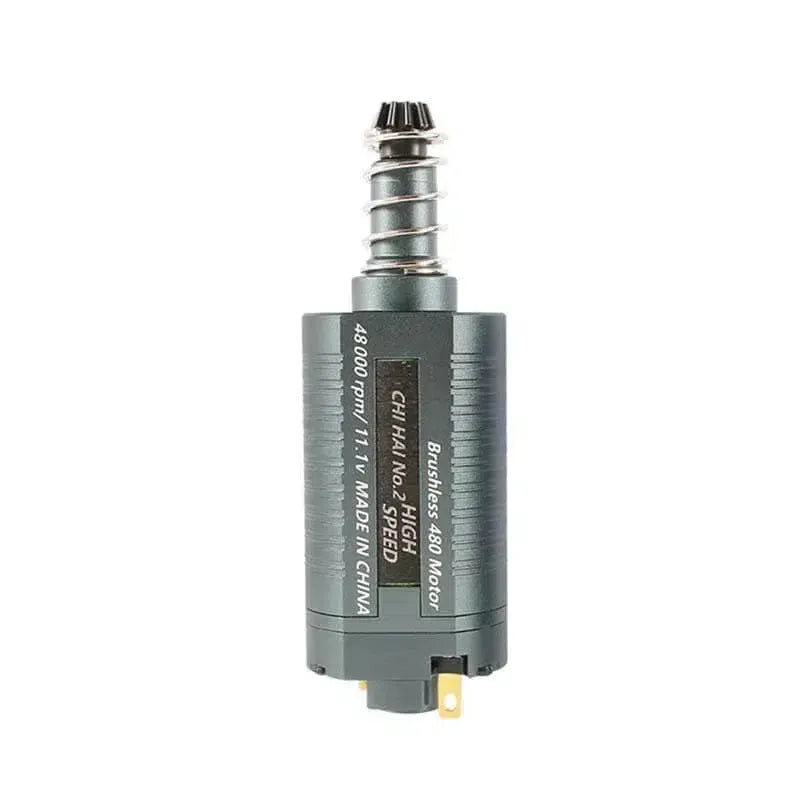

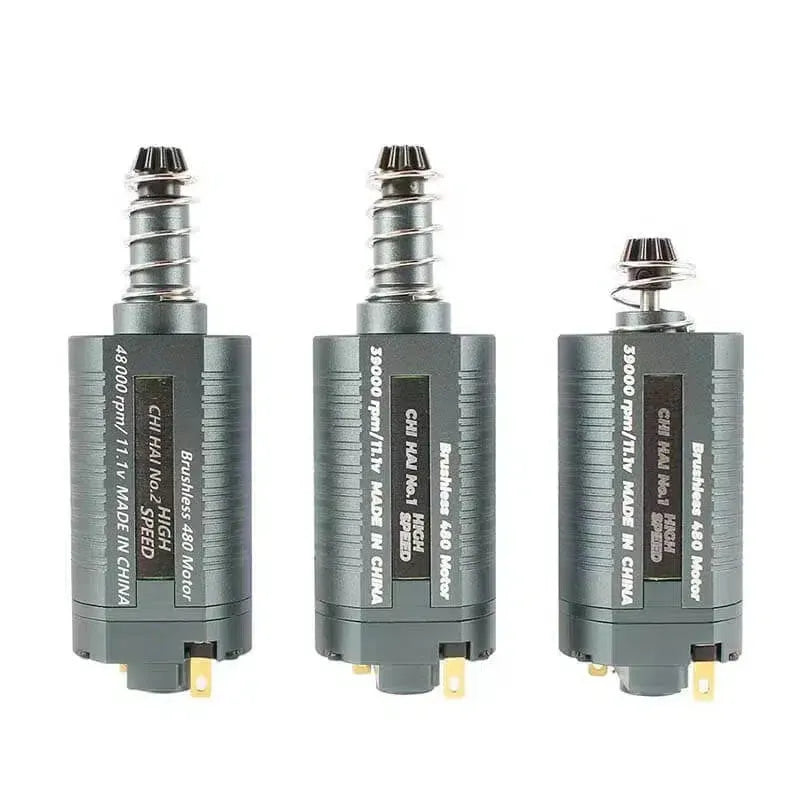

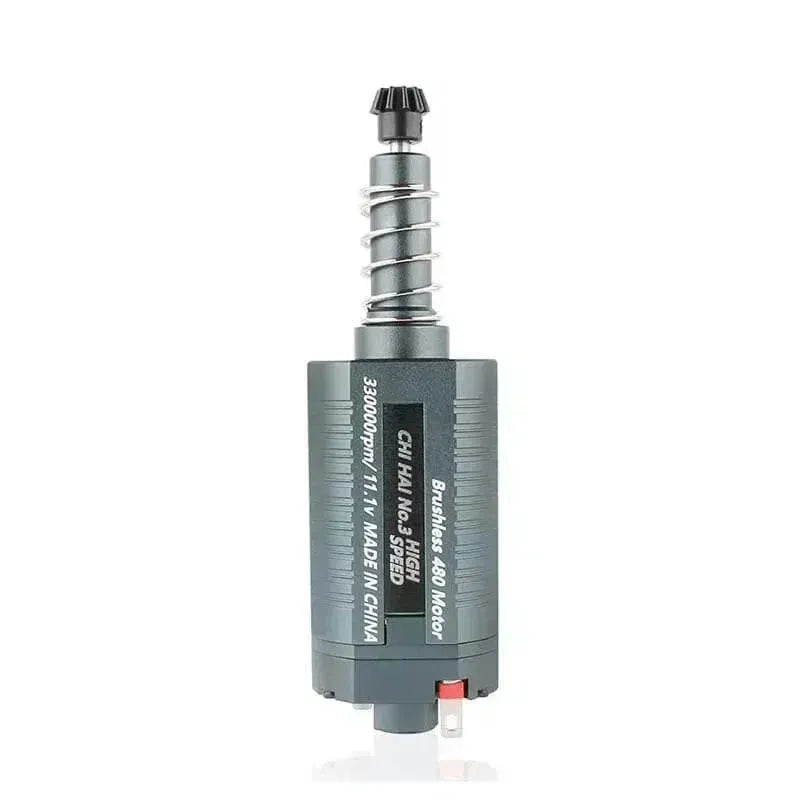

CH Long/Short High Speed AEG Brushless Motor 39000RPM 48000RPM

Chihai Long/Short High Speed AEG Brushless Motor is expertly designed with hall sensory drive and a STM32 driver chip, providing up to 48000RPM. With low heat output and long service life, this motor ensures stable and powerful performance. The all-aluminum alloy body and precision ball bearings further enhance its durability.

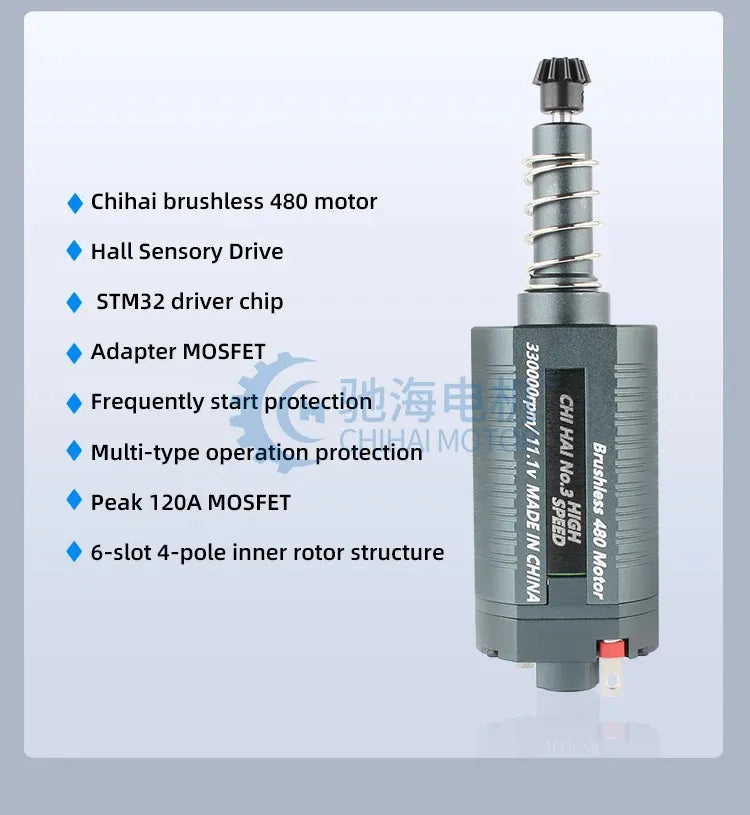

Features:

*Hall Sensory Drive.
*STM32 driver chip.
*Brushless, low heat at high output.
*Long service life, battery temperature.
*Emergency stop after power failure, no buffer, stable output.
*Multi-type operation protection.
*Peak 120A MOSFET.
*CNC all-aluminum alloy body-lightweight.

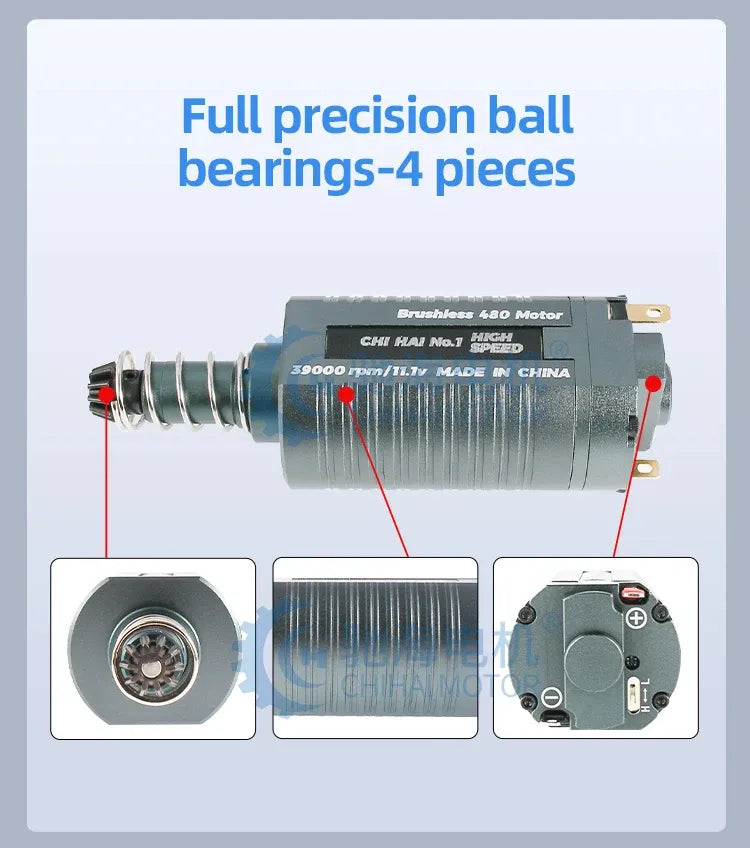

*Full precision ball bearings-4 pieces.
*Dynamic Balancing of Center Shaft Cores.
*6-slot 4-pole inner rotor structure.
*Stepless speed regulation can be adjusted through the potentiometer of the small hole in the tail cover.

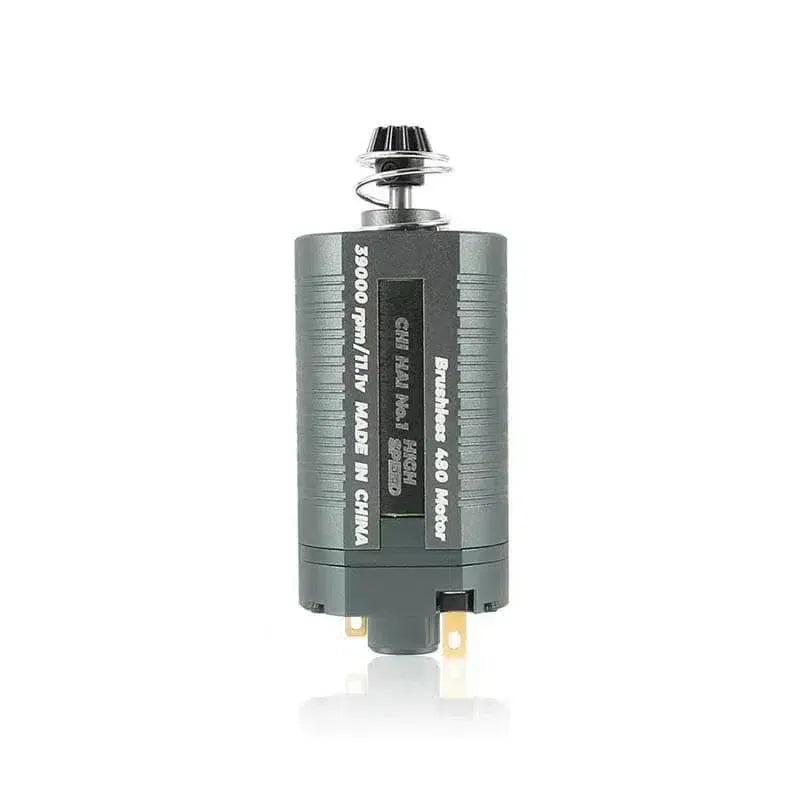

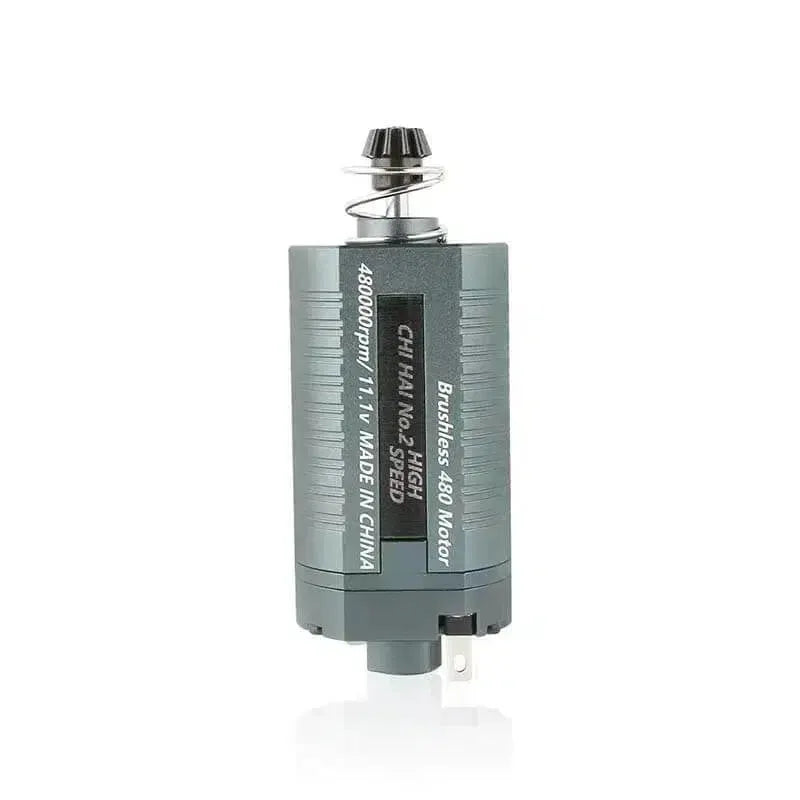

Application：Short shaft fits AK47, AK74, AUG, G36, Vector, Thompson, and other AEGs that use short type motors

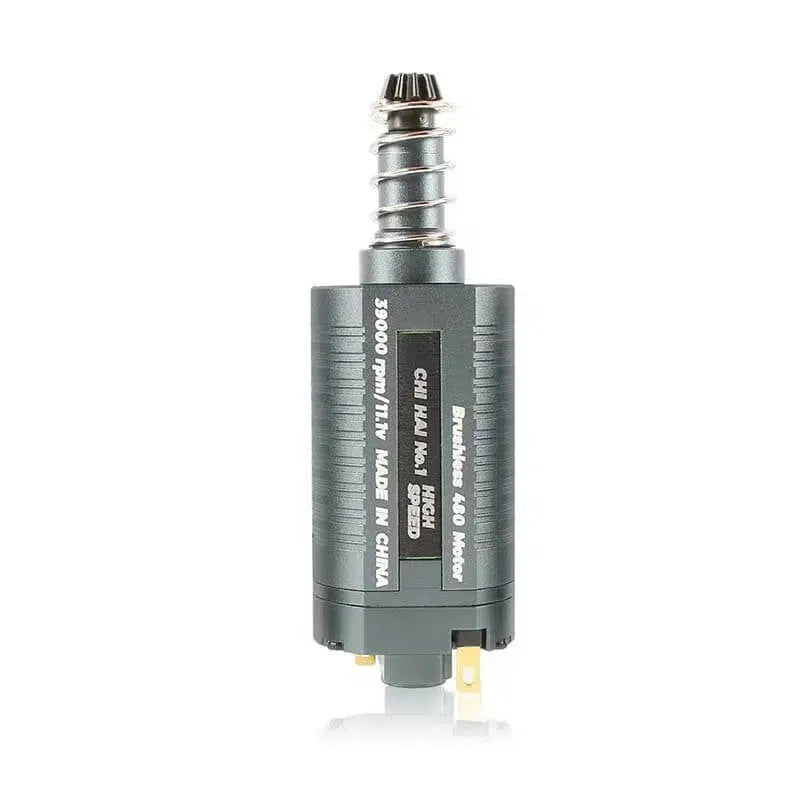

Long shaft for M4/M16/MP5/G3/P90 series and other long motors Airsoft AEG.

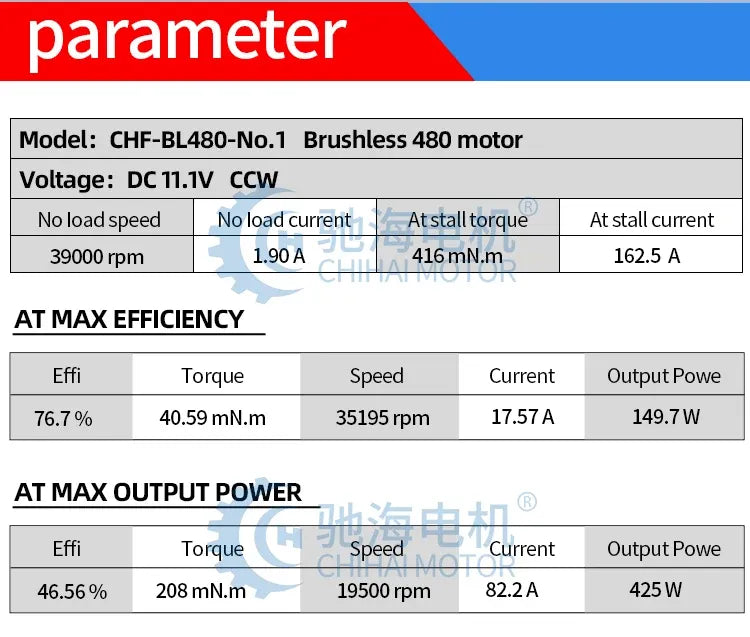

Specifications:

Brand: Chihai Motor
Product Type:CHF-BL480-No.1/2
Magnetic materials:UH grade high performance NdFeB

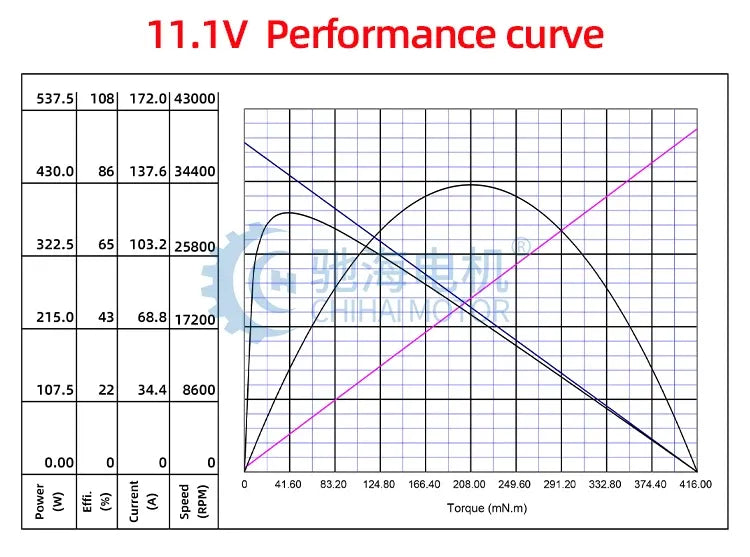

No Load (RPM)：DC: 11.1V-No Load (RPM): 48000
No Load (RPM)：DC: 11.1V-No Load (RPM): 39000
Weight: about 140g
